More tweaks for TreeHugger Mark-3 tent

I have been using SolveSpace to design TreeHugger 1P Mark-3 tent. Here is the previous blog post:

https://bkhome.org/news/202107/plans-for-treehugger-1p-tent-mark-3.html

While waiting for the 10D silnylon to arrive from China, I keep playing with the design. The latest iteration is have made the floor-width at the tail-end a bit wider, 70cm, up from 60cm. Just gives a little bit more foot room inside.

Also tweaked the catenary a little bit, and have put it directly onto the 2-dimensional plans. Here are the SolveSpace 3.0 files, gzipped:

mk3-2d-8.slvs.gz

mk3-3d-8.slvs.gz

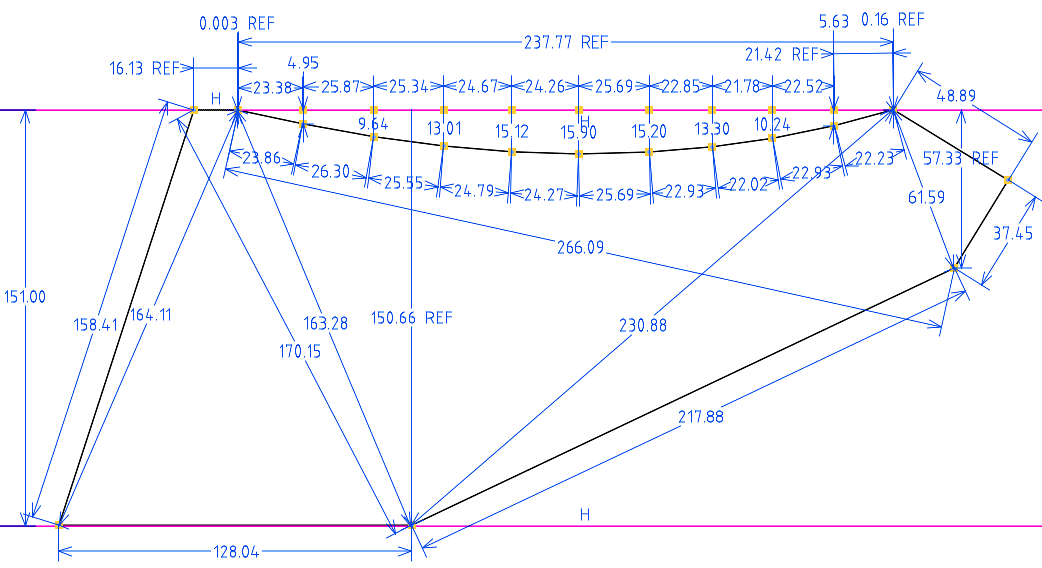

Here are the cutout plans, the pink lines represent the usable fabric width of 151cm:

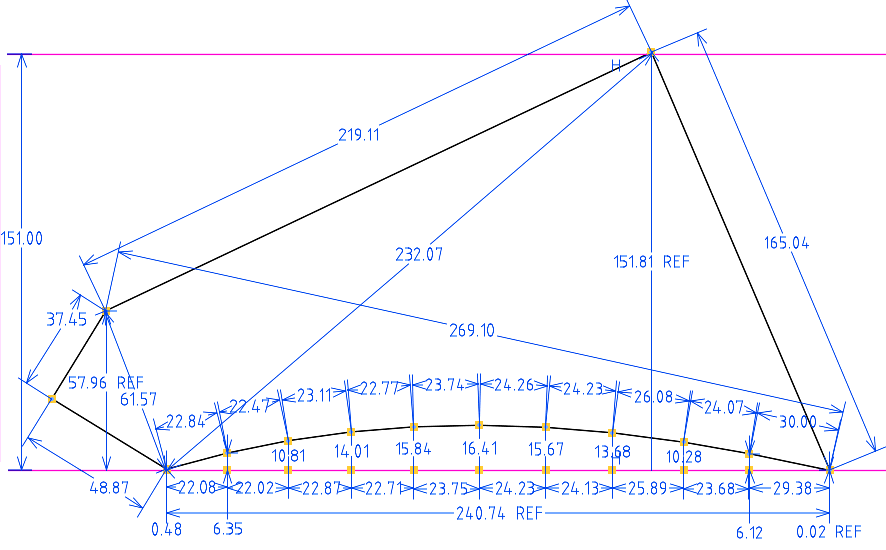

And the other side:

And as shown in the previous post, I have inverted one side so as to minimize the length of cloth required. In the latest design, as the foot-end is wider, the required length of fabric will be longer, about 5.22 metres.
