Two-shock design with swinging steering linkage

Continuing the design of two shock absorbers in the front suspension of a custom leaning trike. Here are the previous two posts:

• Two-shock design with curved rod — November 18, 2023
• Solar leaning trike safety concerns — November 17, 2023

The idea behind the curved-rod is for the steering to tend to go naturally back to driving straight, without any lean. The same effect can be achieved by a swinging linkage, like this:

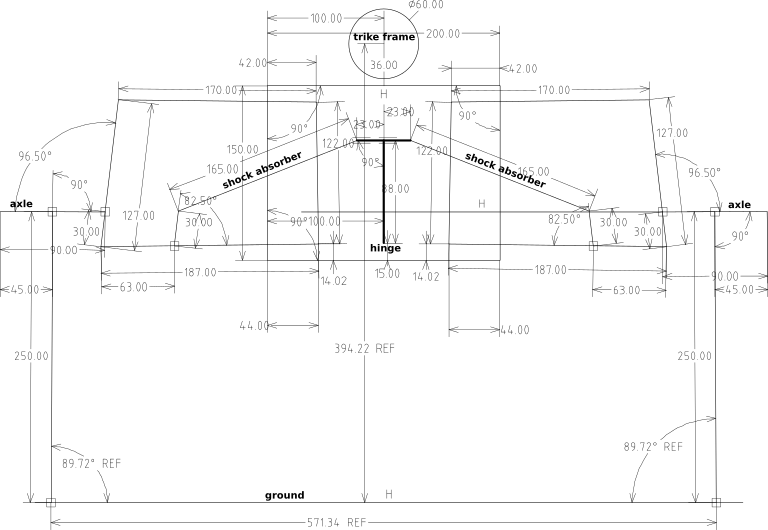

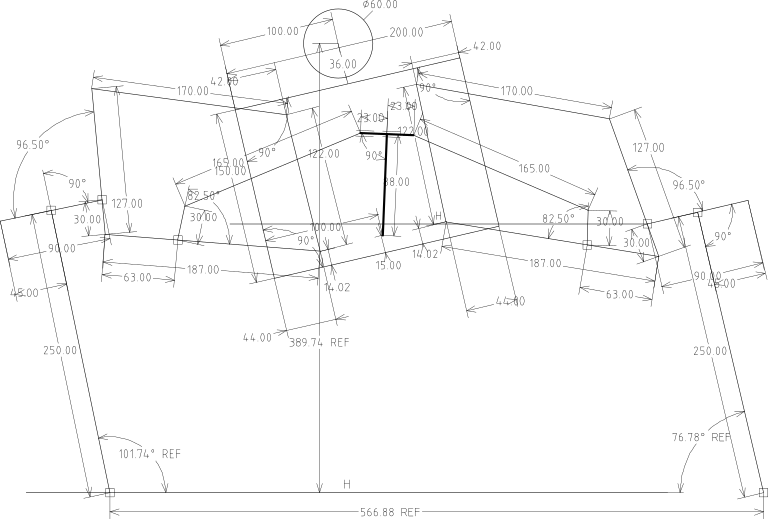

...it is a T-shape, hinged at the bottom. It would be linked (somehow) to the steering, so turning to the side will swivel on the hinge, like this:

...the natural tendency will be to return to driving straight.

As far as handling road bumps, it will handle up to 75mm (3 inch) bumps.

I had rejected this design before, due to potential kickback into the steering mechanism. However, that can be mitigated by a dampener and some flexibility in the steering linkages. Of course, those country roads that I have previously posted photos of, where both wheels will hit the same ripple, the kickbacks will cancel out.

Here is the latest SolveSpace file (with false ".gz" appended):

suspension-7b-2x165.slvs.gz

This design has one big advantage compared with the curved-rod; it is simpler and easier to build.
